Model
MS760,MS860,MS960

Review

Description

Harden® Mobile Shredder MS Series
Product catalog download     >>

Harden®  mobile shredders stand for their high price-performance ratio, good reliability, less downtime. Strict quality control is the key to keep our shredder is satisfying by customers all the time. Hydraulic driving system and special designed blade make the shredder suitable for almost any material shredding. Easy to use is one of the product features, intelligent electric control system and automatic reversing function is the standard configuration. You will feel very comfortable by using our products, it acts like an assistant more than a machine.

Features of Harden® Mobile Shredder

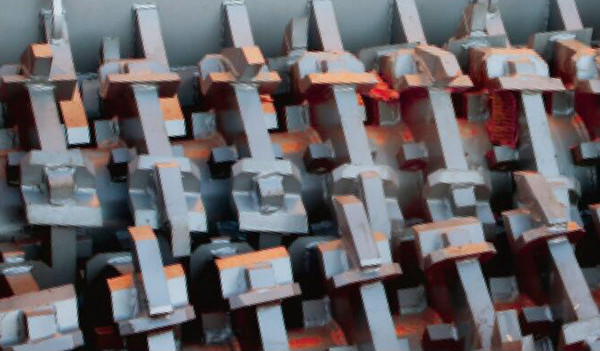

VT-blade Profile
Good performance (Energy savings up to 20%),
self-cleaning
Intelligent Driving System
Automatic speed adjustment, Automatic
reversing function
Humanized Design
Accessibility, Easy to maintenance and
less downtime
Excellent Mobility
Almost can be everywhere and working for you
Drawing
01
DISCHARGE BELT CONVEYOR
Foldable and discharge height up to 4m.

02
OVER-BLET MAGNET
Adjustable height for effective ferrous metal separation.

03
SHREDDING UNIT
Different types of rotary blade available and using top-quality materials.

04

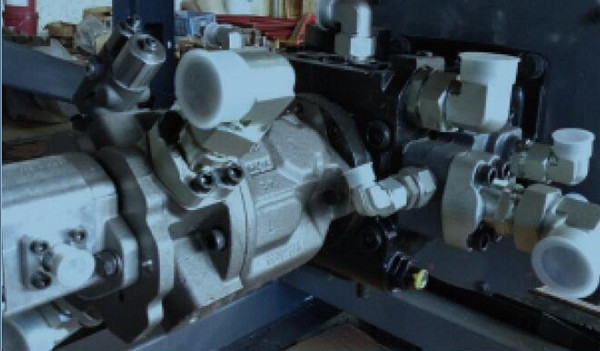

POEWR UNIT
Forceful and energy-efficient.

05
ELECTRIC CONTROL SYSTEM
Intelligent, safe and easy to operate.

Parameter

Model
MS760
MS860
MS960
Power unit
Diesel engine(kw/HP)
264/359
338/460
522/710
Electric motor(kw)
250
2×160
2×250
Shredding unit
Shaft speed
max 25rpm
max 25rpm
max 25rpm
Shaft length
1750mm
2000mm
2500mm
Dimensions
L×W×H(Hook)
7m×2.4m×2.7m
-
-
L×W×H(Track)
7.9m×2.5m×2.8m
8.5m×2.9m×3.2m
12.9m×3m×4m
L×W×H(Electric motor)
7.4m×2.4m×2.7m
8m×2.5m×2.8m
9m×3m×3.3m
Weight

Hook
18t
-
-
Track
20t
25t
42t
Electric
18t
20t
35t
Options
Over-blet magnet,Water sprinking system,
Track with rubber pads,Breaker bar,Special paint
Application & shredding reault
MSW
Green waste
Cars body
Mattresses and Bulky waste
C&D waste
Waste wood, board
Tires
White goods
Custom case

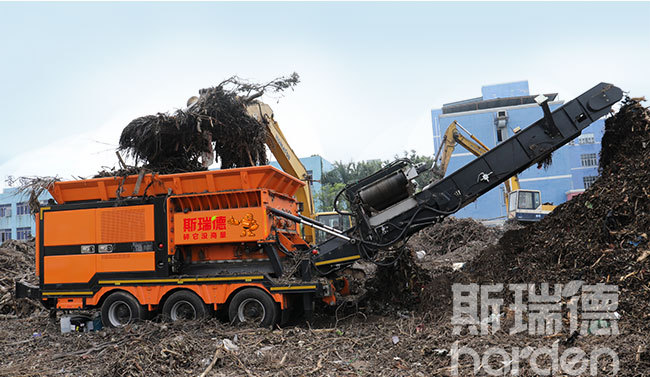

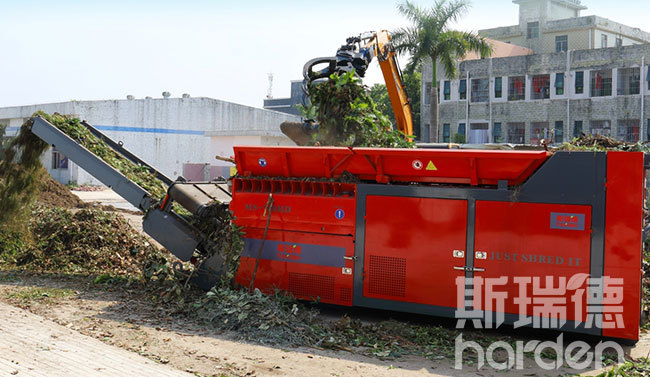

Mobile Shredder for green waste

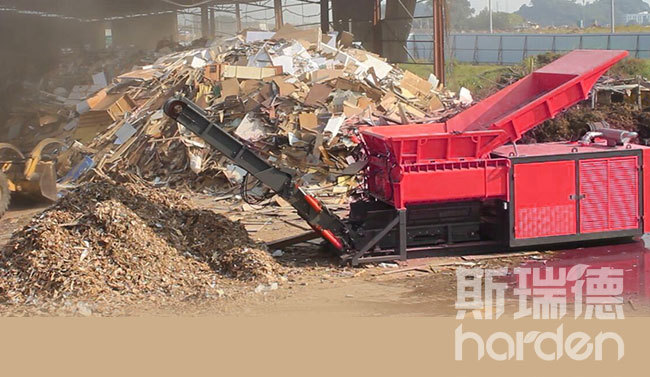

Mobile Shredder for bulky waste
Mobile Shredder for root waste
Mobile Shredder for construiction plate
