Harden® Primary Shredder TPH Series

Group Primary Shredder
Min. Order 1 piece
Terms of Payment L/C, T/T
Update Time 2020-11-06
  • Description
  • Product review
Harden® Primary  Shredder TPH Series

Harden® large-scale hydraulic drive primary shredder is design for volume reduction of bulky waste and pre-treatment of solid waste, features powerful and stable operation and low maintenance cost. With functions of shearing, chopping, tearing and extrusion, the shredder can easily process a variety of waste such as untreated household wastes (MSW), decoration waste and industrial waste.

Harden primary shredder can output relatively uniform materials, which is convenient for further processes of separation or

recycling, so as to obtain valuable resources or high calorific value RDF.


This is a title
Stationary Blades
Integral design, Stable and Reliable
Rotating Blades

Powerful Crushing, Cutting, Tearing, Splitting

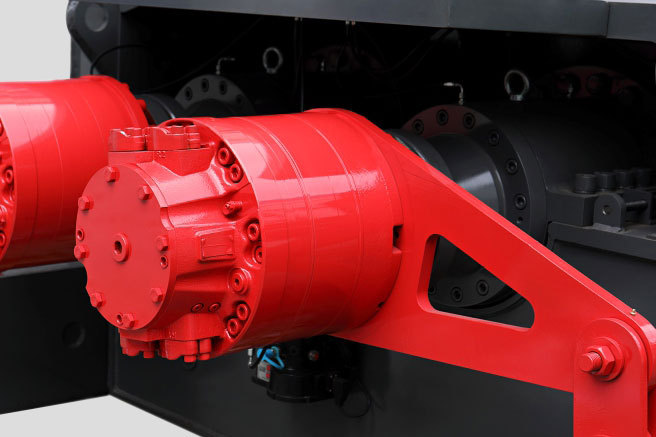

Articulated Torque Arm

Resist the Torque of the Cutter, Reduce Vibration

Dustproof

Full-cover war plate in Cutting Chamber

High-performance Hydraulic System

Wide Speed Range

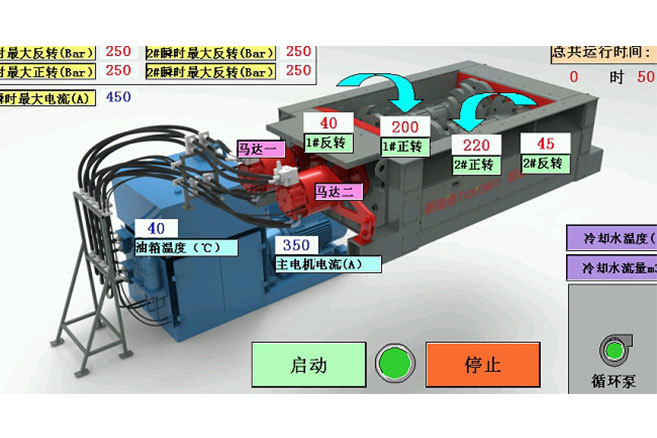

Operating Program
Flexible program for different material properties;
Drawing
TPH1026
TPH1620/TPH1826
Specification
Model
TPH1620
TPH1826
Power (KW)
160 /200 / 250 PQ control
250/160*2 PQ control
Rotating Speed (RPM)
15-67
17-45
Size of Cutting Chamber (AxB)(mm)
2000*1600
2600*1800
Machine Dimension (LxWxH)(mm)
4400*2100*1060
5000*2350*1200
Capacity (Ton/Hour)
30~50
40~80
Application
Untreated MSW
Commercial Waste
Bulky Waste
Biomass, Garden Waste
Wooden Pallet
Waste Car
Household Appliance
Iron & Aluminum Scrap
